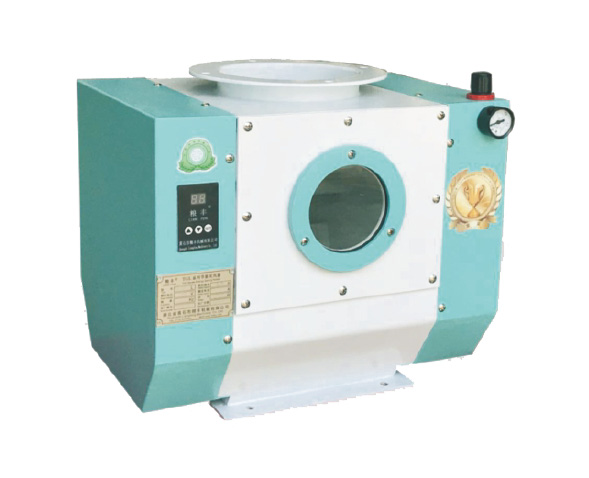

TGL-Q型气动关风器
- ●采用发明专利技术设计制造连通器式翻板结构,外形新颖。 ●TGL-Q型采用气缸驱动+MCU控制。 卸料速度可调、功耗小、运行可靠、不堵料、维护方便。 根……
产品详细
●采用发明专利技术设计制造连通器式翻板结构,外形新颖。
●TGL-Q型采用气缸驱动+MCU控制。
卸料速度可调、功耗小、运行可靠、不堵料、维护方便。
根据不同的物料,可配正压喷吹辅助系统。
●产品具有中控启停、运行信号,故障报警信号、电机保护、现场外接报警功能。
●比同规格叶轮式关风器节能90%以上,可互换使用,安装方便。
● It is designed and manufactured by a number of patented technologies, and it adopts a connecting vessel type tipping structure with novel appearance.
● The TGLQ type is controlled by cylinder drive and MCU.
● The discharging speed is adjustable, the power consumption is low, the operation is reliable, the materialis not blocked and the maintenance is convenient.
● According to different materials, it can be equipped with positive pressure injection auxiliary system. .
● This product has the functions of central control start -stop, operation signal, fault alarm signal, motor protection and on-site external alarm.
● It can save the more than 90% energy than the fan wheel type airlock of the same specification,and it can be used interchangeably for easy installation.
使用范围
Application Scope
TGL系列节能关风器广泛使用于粮食、饲料、食品加工厂及化工、医药、烟草、冶金、水泥等部门。对于在正压、负压状态下的粉粒状、片状及纤维物料起着连续排卸和密4的作用,是通风除尘和气力输送风网中的重要设备。
TGL series anti-block airlock is widely applied tolarge,small and medium-sized foods and feeds process factories,chemical,medicine,tobacco,metallurgy and cement units.It has continuous discharre and airtightness function to the grains,lamellate fiber materials in positive pressure and negative pressure state and is an important equipment of ventilation,dust removal,and transportation wind net.
